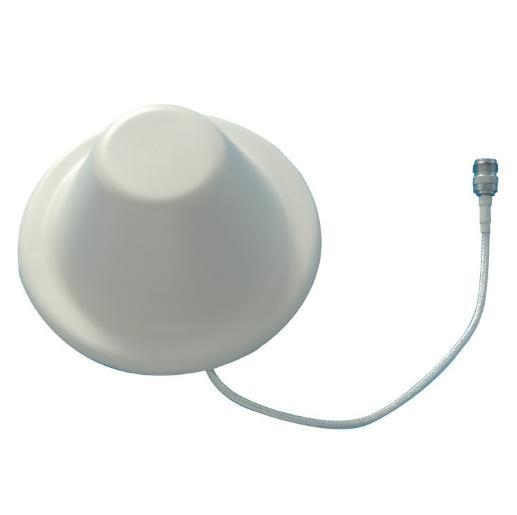

698-2700MHz 5dBi Indoor Omni Directional Ceiling Mount Antenna

    Buy cheap 698-2700MHz 5dBi Indoor Omni Directional Ceiling Mount Antenna from wholesalers

    Buy cheap 698-2700MHz 5dBi Indoor Omni Directional Ceiling Mount Antenna from wholesalers
    • Buy cheap 698-2700MHz 5dBi Indoor Omni Directional Ceiling Mount Antenna from wholesalers

    698-2700MHz 5dBi Indoor Omni Directional Ceiling Mount Antenna

    Ask Lasest Price
    Brand Name : AMEISON
    Model Number : AMXC-7027-5
    Certification : ISO 9001: 2008
    Price : EXW Price
    Payment Terms : TT,Paypal,Western Union
    Supply Ability : 50,000 Pieces per Month
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

    698-2700MHz 5dBi Indoor Omni Directional Ceiling Mount Antenna

    698-2700MHz 5dBi Indoor Omni Directional Ceiling Mount Antenna


    Feature:

    Exquisite appearance

    Suitable for ordinary ceiling mounting

    Optimized dimension

    Wide frequency band,

    low standing wave,

    strong anti-interference ability


    Application:

    Indoor omnidirectional coverage

    GSM/CDMA/PCS/3G/4G/WLAN/LTE system


    AMXC-7027-5

    Electrical Specifications

    Frequency range(MHz)698~960/1710~2700
    Bandwidth(MHz)262/990
    Gain(dBi)5
    Half-power beam width(°)H:360 V:55
    VSWR≤2.0
    Input Impedance(Ω)50
    PolarizationVertical
    Maximum input power(W)50
    Lightning protectionDC Ground
    Input connector typeN Female
    Mechanical Specifications
    Dimensions (mm)Φ185*90
    Cable length(cm)30
    Antenna weight(kg)0.2
    Operating temperature(°c)-40~60
    Radome materialABS
    Radome colorwhite
    Mounting wayfastened with screw nuts
