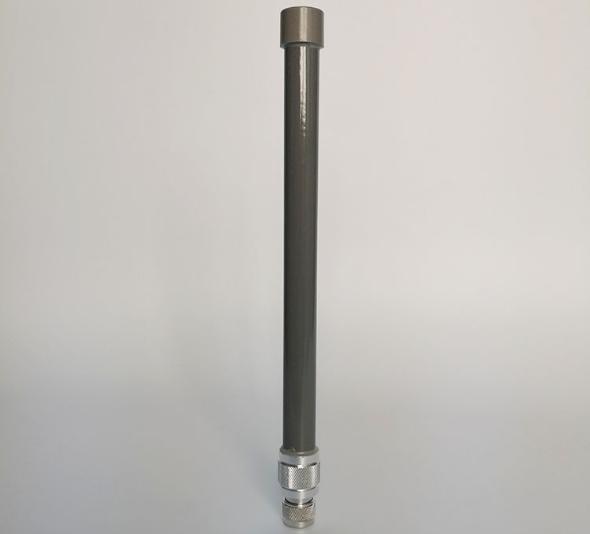

    AMEISON manufacturer 1710-2170MHz Outdoor Omni-directional Fiberglass Antenna 5dbi Support 3G DCS LTE system

    Ask Lasest Price
    Brand Name : AMEISON
    Model Number : AMXF-1722-5
    Certification : ISO 9001: 2008
    Price : EXW Price
    Payment Terms : TT,Paypal,Western Union
    Supply Ability : 50,000 Pieces per Month
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

    AMEISON manufacturer 1710-2170MHz Outdoor Omni-directional Fiberglass Antenna 5dbi Support 3G DCS LTE system

    AMEISON manufacturer 1710-2170MHz Outdoor Omni-directional Fiberglass Antenna 5dbi Support 3G DCS LTE system​


    Feature :
    Exquisite appearance
    Good impact resistance,waterproofing and anticorrosion ability
    Full day working
    Optimized dimension
    High gain,low standing wave,strong anti-interference ability


    Application :
    1710-2170MHz system

    Point-to-multipoint system


    AMXF-1722-5

    Electrical Specifications

    Frequency range(MHz)1710~2170
    Gain(dBi)5
    Half-power beam width(°)H:360 V:35
    VSWR≤2.0
    Input Impedance(Ω)50
    PolarizationVertical
    Maximum input power(W)100
    Lightning protectionDC Ground
    Input connector typeN male or female
    Mechanical Specifications
    Dimensions (mm)Φ20*320
    Antenna weight(kg)0.20
    Operating temperature(°c)-40~60
    Rated Wind Velocity(m/s)60
    Radome colorGray
    Mounting wayPole-holding
    Mounting hardware(mm)¢35-¢50
